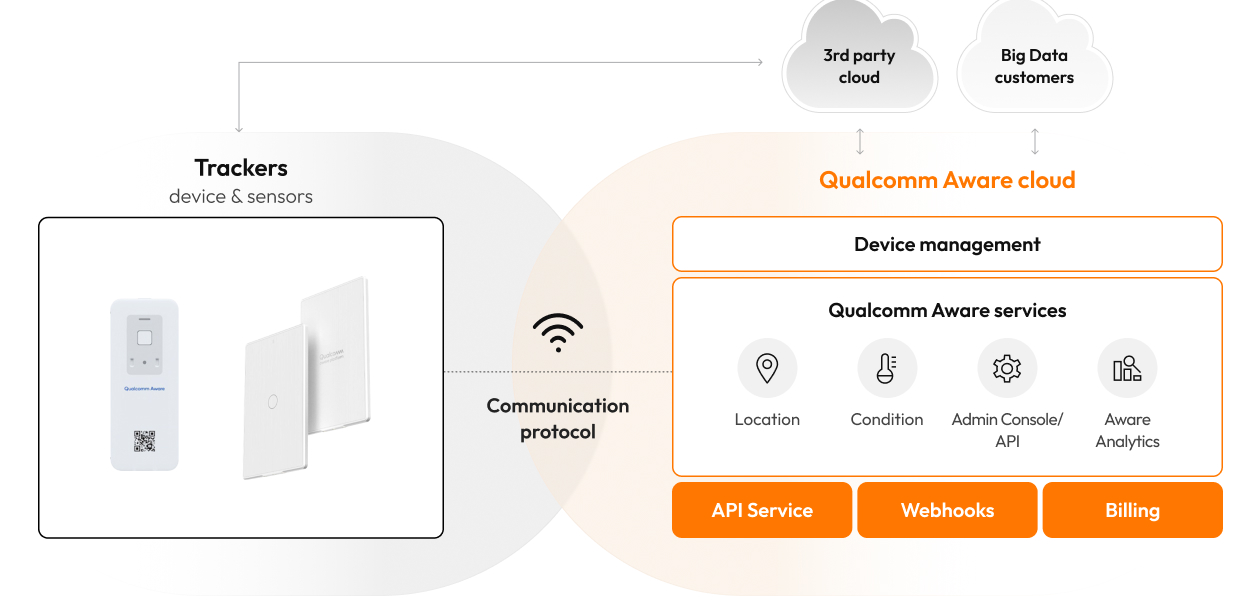

Aware Platform

Qualcomm Aware is a cloud-based IoT asset tracking
and management platform

Features

    • Real-time tracking (GNSS, Wi-Fi, Cellular, BLE)
    • API/SDK integration with ERP/CRM systems
    • Remote device monitoring and firmware updates
    • High scalability and global connectivity (NB-IoT, LTE-M, etc.)
    • Customizable dashboards, alerts, and reports

  • Accurate, real-time visibility

  • Extended battery life & low power

  • Integration with enterprise systems

  • Secure

    GDPR compliant, encrypted data

  • Reliable hardware/software by Qualcomm

Applications Field

  • Logistics & Cold Chain

    Tracking goods, monitor temperature

  • Construction

    Tracking of equipment and vehicles

  • Smart City & Agriculture

    Monitoring the location and condition of infrastructure and equipments

  • Healthcare

    Monitoring medical device location and patients

  • Manufacturing

    Tracking of factory equipment and
    workers’ location, motion, and shock events

  • Retail & Payment

    Asset management of in-store logistics and
    payment terminals

Device Specification

  • QTS110

  • QTS112

Category QTS110 QTS112
Dimensions 50 mm x 125 mm x 14 mm 86 mm x 56 mm x 3.5 mm
Weight 125g 23g, card-size
Operating Temperature 20°C to 60°C (discharging), 5°C to 60°C (charging) -20°C to 60°C (discharging), 5°C to 60°C (charging)
Humidity Up to 85% relative humidity, non-condensing Up to 85% relative humidity, non-condensing
Cellular Network
  • Multi-mode LTE Cat M1, LTE Cat NB2, and EGPRS/2G
    supporting bands : LTE (Cat M1/NB2): Low Bands: B5, B8, B12, B13, B14, B18, B19, B20, B26, B27, B28, B85; Mid Bands: B1, B2, B3, B4, B25, B66
    2G: GSM850, GSM900, GSM1800, GSM1900
  • Embedded eSIM enables global connectivity via 2G, eMTC, or NB-IoT
  • LTE Cat 1 bis (3GPP Rel.14),
    supporting bands : B5, B8, B20, B28, B1, B3, B7
  • Embedded eSIM that enables instant connectivity in approximately 200 countries.
Location Technology Combines GNSS, Wi-Fi scanning, and cellular scanning technologies to enable accurate location tracking both indoors and outdoors. Determines location using cellular networks and Wi-Fi scanning.
Battery
  • 2600mAh lithium-ion rechargeable battery, 3.7 V
  • Charging: USB Type-C or dedicated cradle (supports up to 4 devices simultaneously; approximately 5 hours for 0% to 100% charge).
  • Continuous operation for up to 100 days, depending on usage and reporting intervals
  • 200mAh lithium-ion rechargeable battery, 3.7 V
  • Supports simultaneous charging of up to 10 devices using a dedicated charging cradle
  • Continuous operation for up to 5 days, depending on usage and reporting intervals
Sensors Integrated sensors for temperature, humidity, pressure, and light, along with an IMU for motion, shock, and tilt monitoring. Accelerometer for motion detection
LED Indicators LED indicating device status Single LED indicating charging and device status
Air Transport Compliance Complies with FAA advisory circular AC 91.21-1D
for safe use during air transport. 		Complies with FAA advisory circular AC 91.21-1D
for safe use during air transport.
Durability IP65-rated for dust and water resistance IP65-rated for dust and water resistance
Certifications CE/UK/FCC/ISED/TELEC/KC CE/TELEC/Korea/RoHs/WEEE/Reach
Operating System Runs on ThreadX 2.0 operating system, with support for Delta FOTA(Firmware Over-The-Air) updates Runs on FreeRTOS (updatable via Delta FOTA)
