Wireless Communication

• Connectivity

  LTE Cat. M1/NB-IoT

• Frequency

  LTE Cat M1: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19,
  B20, B25, B26, B27, B28, B66, B85
  LTE Cat NB2 : B1, B2, B3, B4, B5, B8, B12, B13, B18,
  B19, B20, B25, B28, B66, B71, B85

• Transmission Protocol

  TCP / UDP

• Bluetooth

  BLE 5.4

• wifi

  Wi-Fi Access Point Scanning (Indoor Location)

GNSS

• Receiver Type

  GPS + GLONASS concurrent
  BeiDou, Galileo
  SBAS : WAAS, EGNOS, MASA, GAGAN
  *AGPS (optional)

• Location Accuracy

  +/- 1.5m CEP (*50%, 2D RMS, -130dBm, >6 Sats.)

• Update Rate

• Cold Start (TTFF)

  <24s

• Warm Start (TTFF)

  <2s

• Hot Start (TTFF)

  <1s

• Tracking Sensitivity

  Tracking -167dBm / Reacquisition -161dBm / Acquisition -149dBm

Physical

• Dimensions

  110.9 × 59 × 38.5mm / 4.3 × 2.3 ×1.5 inches

• Weight

  220g / 7.76 oz

Hardware (Interface)

• I/O

• CAN Port

• LED Indicator

  LTE Network Status, GPS, Power

• Features

  BLE Gateway, Wi-Fi Indoor location, Tamper Detection(light seneor), Mount Option, IP67

• Motion Sensor

  6-Axis Accelerometer

• User Interface

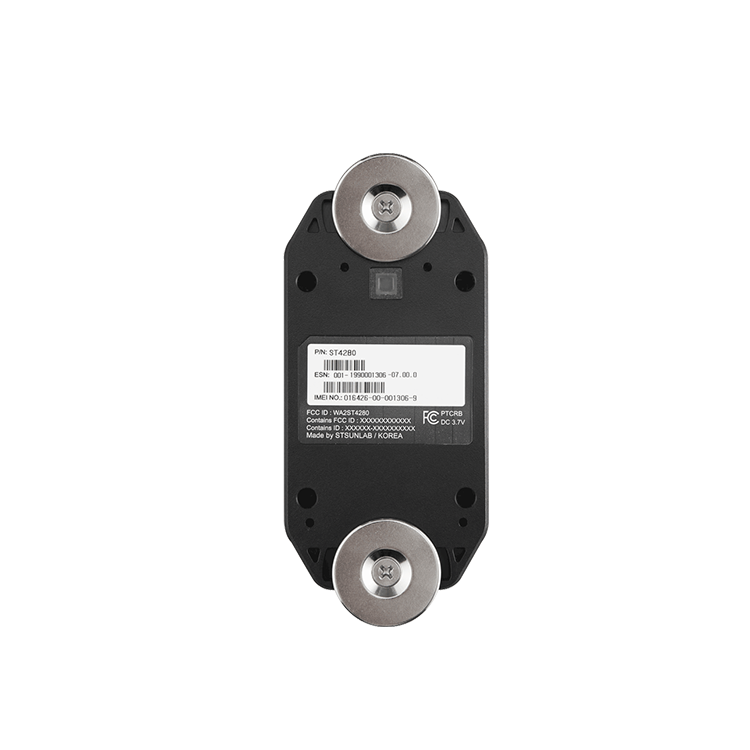

  Mounting Option: Screw, Magnet, Zip cable tie | On/Off Slide Switch | Pinhole Switch for checking on/off status

• SIM Card

  Nano SIM (4FF)

Battery/Power

• Battery

  Primary Battery 3.6V, 17Ah

• Power

• Power Supply

• Power Consumption

  Active Mode : 200mA (LTE Cat M1)
  Active Mode : 40mA (GPS)
  Deep Sleep Mode : 320uA @ 3.6V

Environmental

• Dust and Water Resistant

  IP67

• Operating Temperature

  -25°C ~ +70°C

• Certification

  FCC, PTCRB, CE(TBD)

• Region

  USA, EU

Camera

• CPU

• OS

• Forward Camera

• Inward Camera

• Memory

• Mobile App

• ETC
